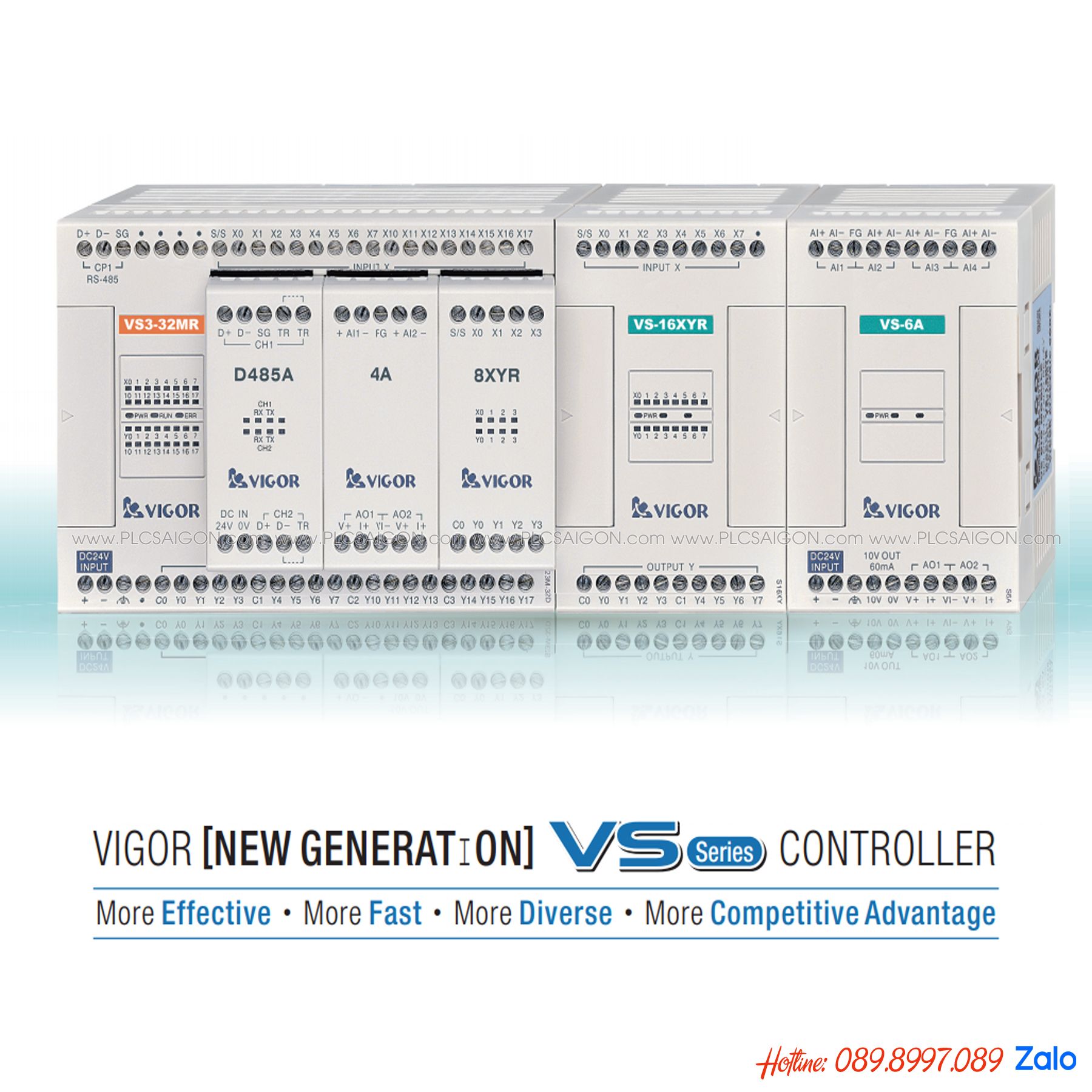

PLC Vigor VS1-10MT, VS1-14MT, VS1-20MT, VS1-24MT, VS1-28MT, VS1-32MT

  • Thương hiệu: Fatek
  • Tình trạng: Còn hàng
2,200,000₫

THông tin sản phẩm

PLC Vigor VS1-10MT-D, VS1-14MT-D, VS1-20MT-D, VS1-24MT-D, VS1-28MT-D, VS1-32MT-D


Item No.View PictureModel No.SpecificationUser Manual
VS1-10M★-D
VS1 Main Unit
6 DI (DC 24V, X0~X5 10 kHz); 4 DO ★; 16K words project memory;
1 Expansion Card socket; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-14M★-D
VS1 Main Unit
8 DI (DC 24V, X0~X7 10 kHz); 6 DO ★; 16K words project memory;
1 Expansion Card socket; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-20M★-D
VS1 Main Unit
12 DI (DC 24V, X0~X7 10 kHz); 8 DO ★; 16K words project memory;
2 Expansion Card sockets; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-24M★-D
VS1 Main Unit
4 DI (DC 24V, X0~X7 10 kHz); 10 DO ★; 16K words project memory;
2 Expansion Card sockets; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-28M★-D
VS1 Main Unit
16 DI (DC 24V, X0~X7 10 kHz); 12 DO ★; 16K words project memory; 3 Expansion Card sockets; DIO Expansion Module available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-32M★-D
VS1 Main Unit
20 DI (DC 24V, X0~X7 10 kHz); 12 DO ★; 16K words project memory; 3 Expansion Card sockets; DIO Expansion Module available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS1-32MT-DI
VS1 Main Unit
16 DI (DC 24V, X0~X7 10 kHz); 16 DO (100mA NPN transistor, Y0~Y3 50 kHz); 16K words project memory; 3 Expansion Card sockets; DIO Expansion Module available; I/O by IDC connector
VS-Brief-MainUnit
VS2-24M★-D
VS2 Main Unit
12 DI (DC 24V, X0~X7 50 kHz); 12 DO ★; 32K words project memory; 2 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS2-32M★-D
VS2 Main Unit
16 DI (DC 24V, X0~X7 50 kHz); 16 DO ★; 32K words project memory; 3 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VS2-32MT-DI
VS2 Main Unit
16 DI (DC 24V, X0~X7 50 kHz); 16 DO (100mA NPN transistor, Y0~Y3 50 kHz); 32K words project memory; 3 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by IDC connector
VS-Brief-MainUnit
VSM-14MT-D
VSM Main Unit
8 DI (DC 24V, 4×200 kHz + 4×50 kHz); 6 DO (500mA NPN transistor, Y0~Y3 200 kHz); 32K words project memory; 1 Expansion Card socket; I/O by screw-clamp terminal
VS-Brief-MainUnit
VSM-24MT-D
VSM Main Unit
12 DI (DC 24V, 4×200 kHz + 4×50 kHz); 12 DO (500mA NPN transistor, Y0~Y3 200 kHz); 32K words project memory; 2 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VSM-32MT-D
VSM Main Unit
16 DI (DC 24V, 4×200 kHz + 4×50 kHz); 16 DO (500mA NPN transistor, Y0~Y3 200 kHz); 32K words project memory; 3 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VSM-28ML-D
VSM Main Unit
4 Line Driver DI (2×1 MHz hardware counters) + 12 DI (DC 24V, 4×50 kHz); 4 Line Driver DO (1 MHz) + 8 DO (500mA NPN transistor); 32K words project memory; 3 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by screw-clamp terminal
VS-Brief-MainUnit
VSM-32MT-DI
VSM Main Unit
16 DI (DC 24V, 4×200 kHz + 4×50 kHz); 16 DO (100mA NPN transistor, Y0~Y3 200 kHz); 32K words project memory; 3 Expansion Card sockets; DIO Expansion & 8 Special Modules available; I/O by IDC connector.
VS-Brief-MainUnit
VS3-32M★-D
VS3 Mian Unit
16 DI (DC 24V, 4×200 kHz + 4×50 kHz); 16 DO ★(Y0~Y3 200 kHz at NPN transistor model);
64K words project memory; 3 Exp. Card sockets; DIO Exp. & 16 Special Modules available;
I/O by screw-clamp terminal
User Manual
VS3-32MT-DI
VS3 Mian Unit
16 DI (DC 24V, 4×200 kHz + 4×50 kHz); 16 DO (100mA NPN transistor, Y0~Y3 200 kHz);
64K words project memory; 3 Exp. Card sockets; DIO Exp. & 16 Special Modules available;
I/O by IDC connector
User Manual
